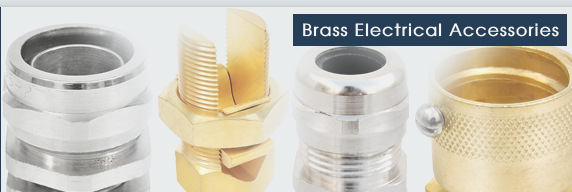

Brass Electrical Accessories |
Our range of Brass Electrical Accessories include various types of Cable Gland, Brass Flexible Adaptor, Split Bolt Connector, Lock Nuts. The Brass Electrical Accessories that we manufacture follow different standards and technical specifications. Apart from standard size , A2, A1/A2 Type Cable Gland, CW3 Part Cable Gland, CW4 Part Cable Gland, BW2 Part Cable Gland, BW4 Part Cable Gland, E1W Type Cable Gland, Alco Cable Gland, PG Cable Gland, TRS Cable Gland, BWR Cable Gland and Marine Cable Gland are also available as per customer's specifications. These cable glands are suitable for various outdoor and indoor applications. |
|
| |
| A2, A1/A2 Type Cable Gland |
EO-001 |
|
| Size: |
16 mm to 110 mm S & L |
| Application: |
Manufactured in brass to comply with the specifications and requirement of BS 6121 |
| Use: |
Rubber or Plastic, un-armoured cable |
|
|
|
| |
| |

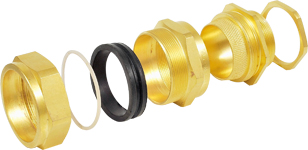

| Cw3 Part Cable Gland |
EO-002 |
|
| Size: |
20 mm to 90 mm S & L |
| Application: |
Use with SWA, plastic and rubber (Elastomer) sheathed cables. |
| Use: |
Dry indoor application for armoured cable |
|
|
|
| |
| |
| Cw4 Part Cable Gland |
EO-003 |
|
| Size: |
20 mm to 90 mm S & L |
| Application: |
Use with SWA, plastic and rubber (Elastomer) sheathed cables. |
| Use: |
Dry indoor application for armoured cable |
|
|
|
| |
| |
| Bw2 Part Cable Gland |
EO-004 |
|
| Size: |
20 mm S to 90 mm |
| Application: |
Use with SWA, plastic and rubber (Elastomer) sheathed cables. |
| Use: |
Dry indoor application for armoured cable |
|
|
|
| |
| |
| E1w Type Cable Gland |
EO-005 |
|
| Size: |
20 mm to 90 mm S & L |
| Application: |
This all weather gland effects the cable outer sheath and the gland nut and between the cable inner sheath and gland body |
|
|
|
| |
| |
| Bw4 Part Cable Gland |
EO-006 |
|
| Size: |
20 mm S to 90 mm S & L |
| Application: |
Suitable for SWA, plastic and rubber sheathed cable |
| Use: |
Indoor applications |
|
|
|
| |
| |
| Alco Part Cable Gland |
EO-007 |
|
| Size: |
G 204 to G 755 |
| Application: |
Use with SWA, plastic and rubber (Elastomer) sheathed cables. |
| Use: |
Dry indoor application for armoured clamp |
| Material: |
Brass and Nickel plated |
|
|
|
| |
| |
|
| Size: |
PG 7 to PG 48 |
| Application: |
Available with strain relief facility with round or hex intermediate sockets, long and short anti threads |
| Material: |
Brass and Nickel plated |
|
|
|
| |
| |
|
| Size: |
16 mm to 32 mm |
| Application: |
While not manufactured to a specific standard, are accepted by many contractors and use as satisfactory method of securing flexible cables. |
|
|
|
| |
| |
| Brass Flexible adaptor |
EO-010 |
|
| Size: |
20 mm, 25 mm, 32 mm, 3/4", 1", 5/4", 3/2", 2" |
| Application: |
Male/Female Thread with/without Lock Nut & Screw |
|
|
|
| |
| |
|
| Size: |
BWR 0 to 7 |
| Application: |
For indoor use. Two piece handling. No loose parts. Freely rotating captive cone. Available in Brass & Nickel. |
|
|
|
| |
| |
| Marine Cable Gland |
EO-012 |
|
| Size: |
10 mm to 70 mm |
| Application: |
Used for various marine applications |
|
|
|
| |
| |
| Split Bolt Connector |
EO-013 |
|
| Size: |
10 mm to 240 mm |
| Application: |
Brass Split Bolt made of high tensile brass. Pressure pads are made from struded bars to prevent pads from cracking |
| Material: |
Natural brass, Copper coated and Aluminium coated. |
|
|
|
| |
| |
|
| Size: |
Metric M 20 to M 75, Imperial 3/4" to 3", PG 7 to PG 48 |
| Material: |
Natural Brass, Brass Nickel plated & MS Zinc plated |
|
|
|
| |
| |
